Product Description

E100 Multifunction Drill
Mini Multi-Function Bone Drill Machine
E100 Multifunction Drill
Technical parameters:
Speed Range (Key Chuck): 0-1200rpm
Torque (Key Chuck): 3.5N-m
Speed Range (Reaming): 0-400rpm
Torque (Reaming): 10N-m
Key Features:
■ All copper thick wall chuck, highly durable, exceptional concentricity with stable speed. Spindle clamping design ensures quick and easy drill bit changes.
■ Tail power switch design offers smooth operation, aesthetic appeal, and unobstructed handling.
■ Equipped with a high-power micro motor featuring full copper core wire movement, yielding low noise and high stability.
■ Compact layout makes it easy and convenient to store.
■ Frosted texture body surface process effectively prevents slippage, offering a comfortable grip for fatigue-free, long-term use.
Details
Detail Image 1
Detail Image 2 Detail Image 3
Detail Image 4
Specification
Item Value
Multi-Function Handpiece Equipped with brushless DC canulated motor imported from USA

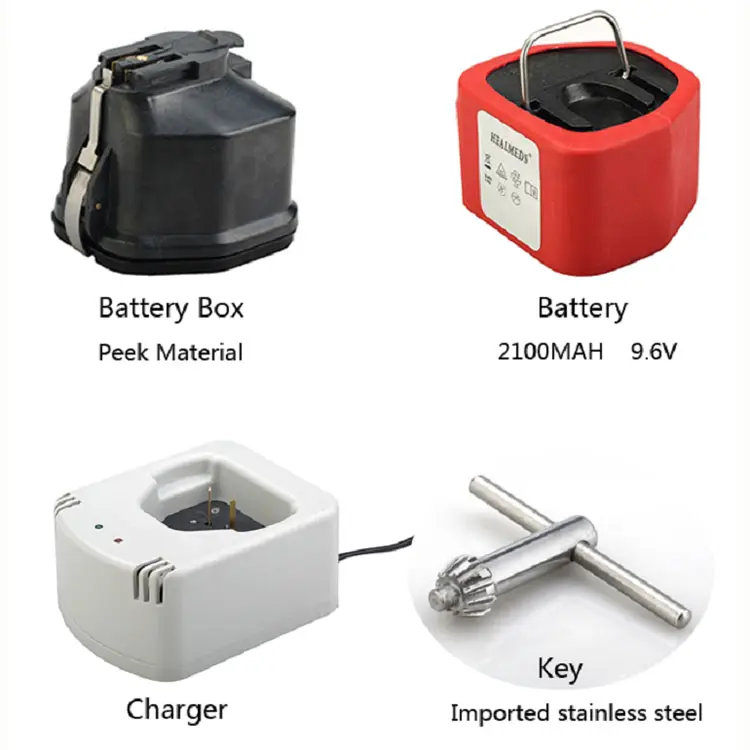

Battery Ni-MH with Longer service-life, High capacity:2100MAH Voltage: 9.6V
Battery Box Peek material: sterilized more than 3000 times
Charger More convenient design to guarantee the battery life
Transfer Shield Imported stainless steel 304
Key Chuck Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment Speed Range 0-400rp, Torque 10NM
K-wire Attachment 0.7-1.6mm/1.6-4.0mm

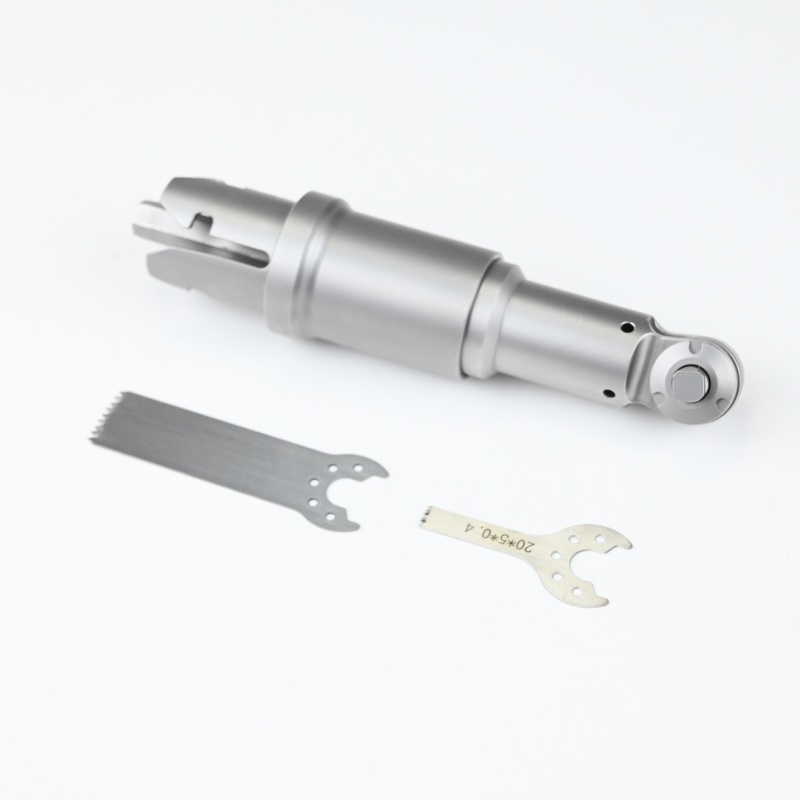

Reciprocating Saw Frequency: 0-12000cpm
Sterilizating box 445*275*215mm, 4.6Kg
Payment & Delivery
Payment and Delivery
Our Advantages
Advantage 1 Advantage 2 Advantage 3 Advantage 4
FAQ
FAQ Overview
What attachments are compatible with the E100 Multifunction Drill?

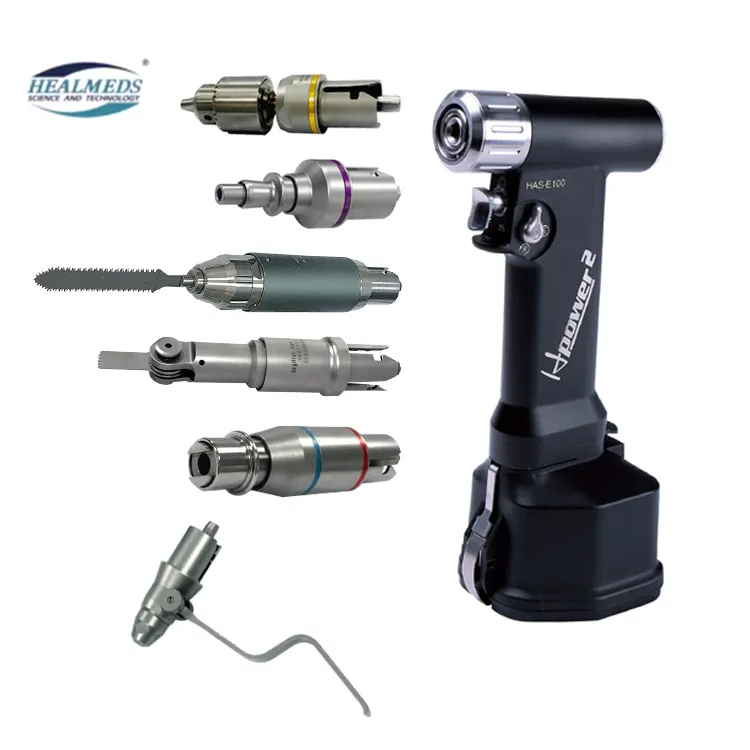

The E100 system supports multiple quick-connect attachments, including a Key Chuck (0-1200rpm), Reaming Attachment (0-400rpm), K-wire Attachment (0.7-1.6mm/1.6-4.0mm), and Reciprocating Saw (0-12000cpm).
How many times can the PEEK battery box be autoclaved?
The PEEK (Polyether ether ketone) battery box is highly durable and designed to be sterilized under high temperatures and pressures more than 3,000 times.
What are the battery specifications?
The device uses a high-capacity Ni-MH battery with a voltage of 9.6V and capacity of 2100MAH. It is designed to provide long service life and consistent power output.
Does the motor feature low-noise operation?
Yes, the handpiece is equipped with a brushless DC canulated motor imported from the USA, which provides low noise, high power, and high operating stability.
How is the battery protected during the sterilization process?
A transfer shield made of imported 304 stainless steel is included. It protects the sterile status of the handpiece while inserting the non-sterilized battery.
