Conmed Stryker Multifunctional Drill Saw System Orthopedic Power Drill for Vet

Send Inquiry

Product Description

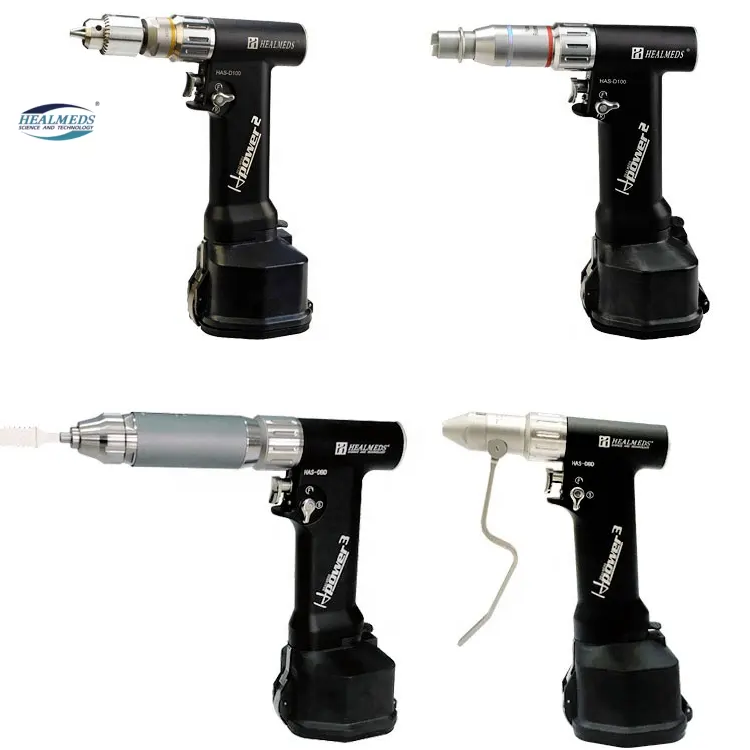

E100 Multifunctional Drill Saw System Medical Electric Orthopedic Drill for Orthopaedic Power Tools

Features

Performance Specifications

Speed Range (Key Chuck Attachment): 0-1200rpm

Torque (Key Chuck Attachment): 3.5N-m

Speed Range (Reaming Attachment): 0-400rpm

Torque (Reaming Attachment): 10N-m

Exceptional maneuverability and control
Minimized chance of sterility breaks
Proven durability with extensive trials to ensure reliability and integrity in a wide variety of potential scenarios

Details

Specification

Item	Value

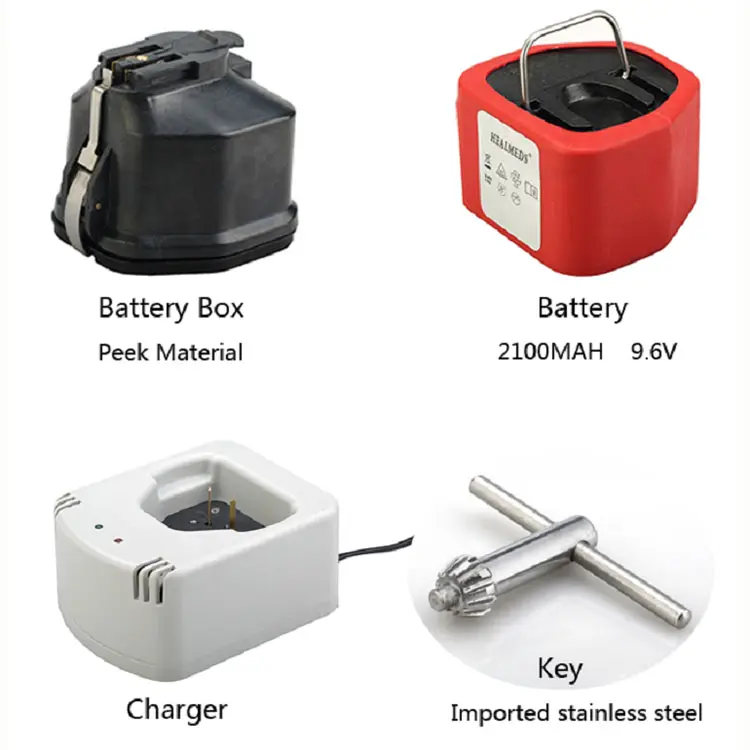

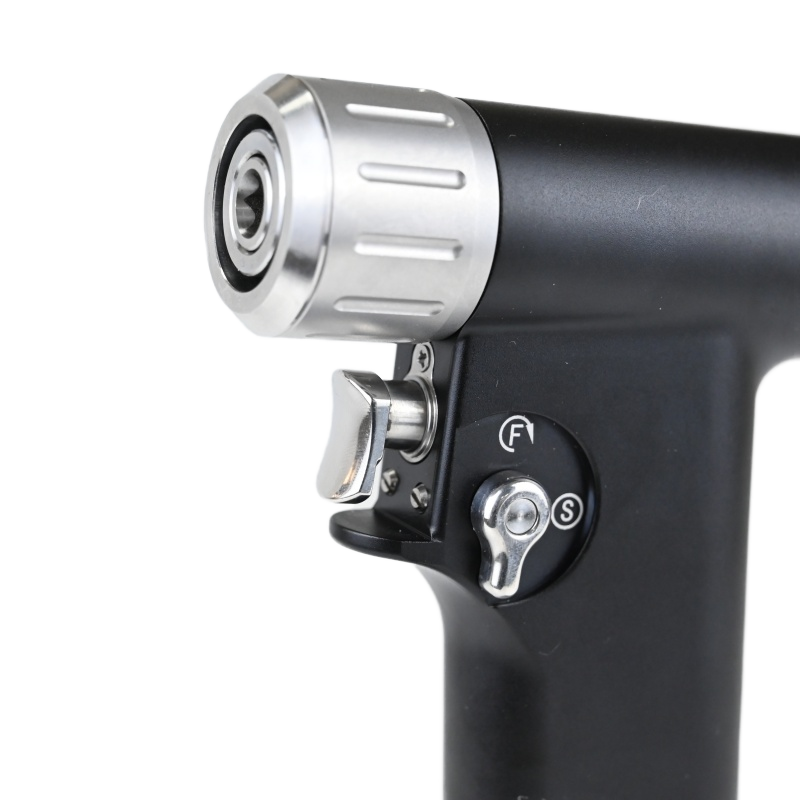

Multi-Function Handpiece	Equipped with brushless DC canulated motor imported from USA

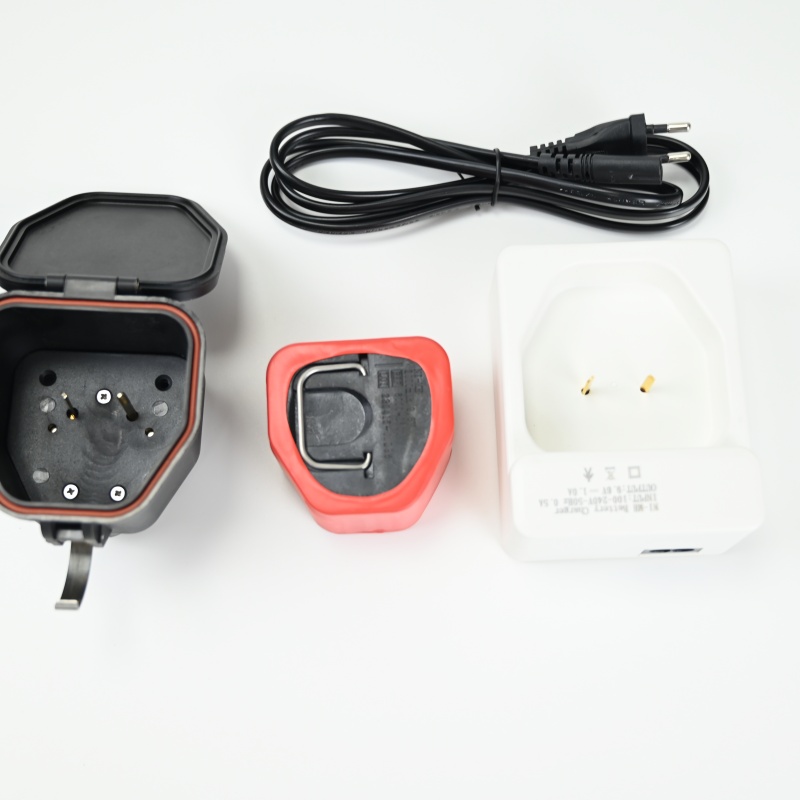

Battery	Ni-MH with Longer service-life, High capacity:2100MAH Voltage: 9.6V

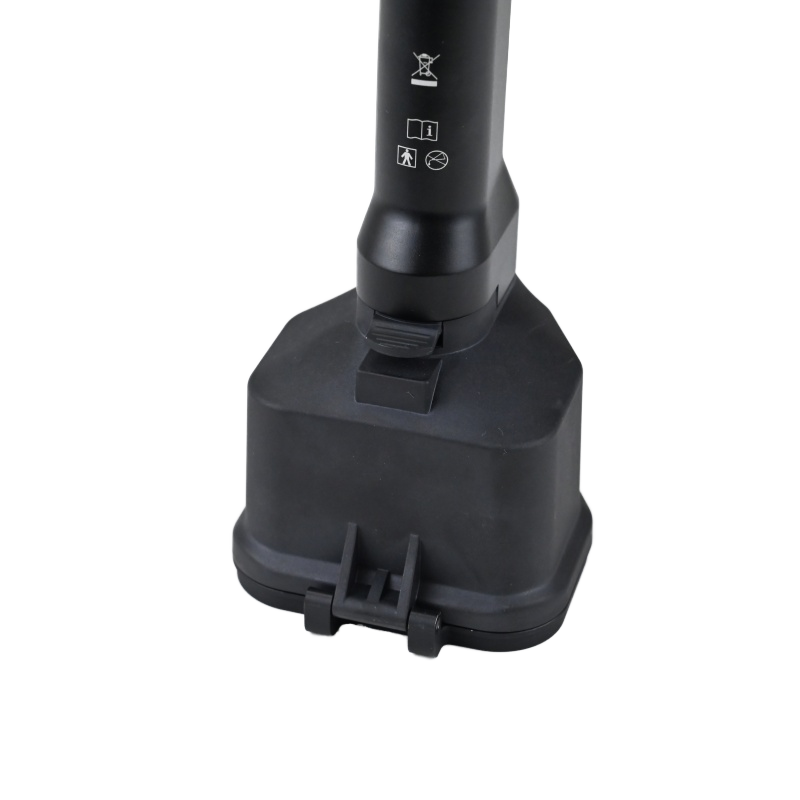

Battery Box	Peek material: sterilized more than 3000 times
Charger	More conveninent design to guarantee the battery life
Transfer Shield	Imported stainless steel 304
Key Chuck	Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment	Speed Range 0-400rp, Torque 10NM
K-wire Attachment	0.7-1.6mm/1.6-4.0mm
Reciprocating Saw	Frequency: 0-12000cpm
Sterilizating box	445275215mm, 4.6Kg

Payment & Delivery

Our Advantages

FAQ

Q1: Can the handpiece and attachments be autoclaved?

A1: Yes, the multi-function handpiece, attachments, and PEEK battery box are fully autoclavable up to 135°C. Please note that the battery itself should not be autoclaved.

Q2: What is the lifespan of the battery?

A2: The system uses a high-capacity Ni-MH battery (2100mAh, 9.6V) designed for long service life. The custom charger design prevents overcharging to optimize and extend the battery's overall cycles.

Q3: How many times can the battery box be autoclaved?

A3: The battery box is made from highly durable PEEK material, allowing it to be safely sterilized in an autoclave more than 3000 times without degrading.

Q4: Is the motor speed adjustable?

A4: Yes, the handpiece is equipped with a brushless DC motor imported from the USA, which supports precise variable speed control via the trigger. The speed and torque adjust based on the attachment in use (e.g., 0-1200rpm for Key Chuck, 0-400rpm for Reaming).

Q5: What sizes of K-wire attachments are available?

A5: The E100 system supports K-wire attachments designed to clamp wire sizes ranging from 0.7mm to 1.6mm and 1.6mm to 4.0mm, making it versatile for different orthopaedic surgeries.

Q6: What is the frequency of the reciprocating saw?

A6: The reciprocating saw attachment operates within a frequency range of 0 to 12000 cycles per minute (cpm), providing clean and rapid bone cuts.
