| Picture number | Part Name | Specification | Size | Quantity | Coding | Drawing number |
|---|---|---|---|---|---|---|
| 1 | Radiographic Ruler | Development template | 9-12 | 1 | 90002201 | GA3X01 |
| 2 | Guide Wire 3.2 mm | Thread guide pin | 3.2×400 | 5 | 90002003 | GA1X03 |
| 3 | Hand Reamer | Hard expansion | 9 | 1 | 90002025 | GA1X25 |
| 4 | Flexible Ream Shaft | Soft expansion tool bar is rotating forward | 8.5-14 | 1 | 90002204 | GA3X0500 |
| 5 | Opening Drill Bit , cannulated | Proximal Hollow Drill | 14 | 1 | 90002203 | GA3X04 |
| 6 | Protection Sleeve | Inlet guide tube | \ | 1 | 90002601 | GA8X01 |
| 6 | Handle for Protection Sleeve | Channel handle | \ | 1 | 90002602 | GA8X0200 |
| 7 | Gripper | Guide pin holder | 117 | 1 | 90002050 | GA1X4100 |
| 8 | Connection Screw, cannulated | Connecting bolt | M8×0.75 | 2 | 90002218 | GA3X09 |
| 9 | Rod Pusher for Reaming Rod with Hexagonal Screwdriver | Ball handle wrench | SW6.5 | 1 | 90002217 | GA3X0800 |
| 10 | Insertion Handle for Nail | Handle | \ | 1 | 90002219 | GA3X10 |
| 11 | Multihole Drill Sleeve | Cellular locator | 17/3.2 | 1 | 90002603 | GA8X0300 |
| 12 | quick coupling | Adapter | 85 | 1 | 90002056 | GA1X4700 |
| 13 | T-Handle with quick coupling | Quick change handle | 92 | 1 | 90002055 | GA1X4600 |
| 14 | Reduction Instrument for Medullary Nails | Reset rod | 7 | 1 | 90002016 | GA1X1600 |
| 15 | Reamer Head, 8.5 mm dia. | Soft expansion head 8.5 | 8.5 | 1 | 90002205 | GA3X06 |
| 15 | Reamer Head, 9 mm dia. | Soft expansion head 9 | 9 | 1 | 90002206 | GA3X07 |
| 15 | Reamer Head, 9.5 mm dia. | Soft expansion head 9.5 | 9.5 | 1 | 90002207 | GA3X07 |
| 15 | Reamer Head, 10 mm dia. | Soft expansion head 10 | 10 | 1 | 90002208 | GA3X07 |
| 15 | Reamer Head, 10.5 mm dia. | Soft expansion head 10.5 | 10.5 | 1 | 90002209 | GA3X07 |
| 15 | Reamer Head, 11 mm dia. | Soft expansion head 11 | 11 | 1 | 90002210 | GA3X07 |
| 15 | Reamer Head, 11.5 mm dia. | Soft expansion head 11.5 | 11.5 | 1 | 90002211 | GA3X07 |
| 15 | Reamer Head, 12 mm dia. | Soft expansion head 12 | 12 | 1 | 90002212 | GA3X07 |
| 15 | Reamer Head, 12.5 mm dia. | Soft expansion head 12.5 | 12.5 | 1 | 90002213 | GA3X07 |
| 15 | Reamer Head, 13 mm dia. | Soft expansion head 13 | 13 | 1 | 90002214 | GA3X07 |
| 16 | Awl , cannulated | Hollow hole opener | 4.2 | 1 | 90002005 | GA1X0500 |
| 17 | Protection Sleeve, 12/8 | Outer casing 12/8 | 12-8 | 2 | 90002227 | GA3X18 |
| 17 | Drill Bit Sleeve,8/4.3 | Drill sleeve 8/4.3 | 8/4.3 | 2 | 90002228 | GA3X19 |
| 17 | Trocar,4.3 | Trocar 4.3 | 4.3 | 1 | 90002229 | GA3X20 |
| 18 | Screwdriver, hexagonal with spherical head | Connecting bolt universal wrench | SW6.5 | 1 | 90002106 | GA2X0600 |
| 19 | Connector, for Insertion Handle | Driver | SW11/M8 | 1 | 90002202 | GA3X0200 |
| 20 | Aiming Arm | Proximal sight | \ | 1 | 90002220 | GA3X1100 |
| 21 | Protection Sleeve, 11.5/8.5 | Outer casing 11.5/8.5 | 11.5/8.5 | 2 | 90002221 | GA3X12 |
| 21 | Guild Pin Sleeve,8.5/3.2 | Guide needle cannula 8.5/3.2 | 8.5/3.2 | 2 | 90002222 | GA3X13 |
| 21 | Trocar 3.2mm | Trocar 3.2 | 3.2 | 1 | 90002223 | GA3X14 |
| 22 | Drill Bit,4.3,Long | Long bone drill 4.3 | 4.3 | 2 | 90002231 | GA3X22 |
| 23 | Hammer Guide Shaft | Sliding hammer guide rod | M12/10 | 1 | 90002156 | GA2X56 |
| 24 | Depth Gauge for Locking Screws, | Lock nail depth sounder | 20-100 | 1 | 90002230 | GA3X2100 |
| 25 | Direct Measuring Device for Guide Pin | Guide pin depth sounder | 40-130 | 1 | 90002224 | GA3X15 |
| 26 | Reamer(Fixation Sleeve for Reamer) | Proximal limit step drill | 6.5/4.5 | 1 | 90002225 | GA3X1600 |
| 27 | Sliding Hammer | Sliding hammer | 260 | 1 | 90002073 | GA1X6400 |
| 28 | Compression Screw | Pressure bolt | M6 | 1 | 90002226 | GA3X17 |
| 29 | Screwdriver Stardrive, T25 | Lock nail wrench T25 | T25 | 1 | 90002232 | GA3X2300 |
| 30 | Screwdriver Stardrive Shaft, T25 | Lock nail wrench lever T25 | T25 | 1 | 90002233 | GA3X24 |
| 31 | Ream 6.0 | Flat drill 6.0 | \ | 1 | 90002240 | GA3X31 |
| 32 | Drill Bit 6.0 | Bone Drill 6.0 | \ | 1 | 90002241 | GA3X32 |
| 33 | Reamer 3.4/6.0 | Step drill 3.4/6.0 | \ | 1 | 90002242 | GA3X33 |
| 34 | Direct Measuring Device for Drill Bits | Sounder 4.5 | 150 | 1 | 90002108 | GA2X08 |
| 35 | Drill Bit,4.3 | Bone Drill 4.3 | 150 | 2 | 90002148 | GA2X48 |
| 36 | Handle with quick coupling | AO type quick change handle | \ | 1 | 90002155 | GA2X5500 |
| 37 | Pin Wrench | Small wrench | 4 | 1 | 90002103 | GA2X03 |
| 38 | Combination Wrench | Open-end wrench | SW11 | 1 | 90002102 | GA2X02 |
| 39 | Handle for Expander Spacer | Auxiliary positioning rod holder | 268 | 1 | 90002248 | GA3X3900 |
| 39 | ConnectingScrew of Expander Space | Auxiliary positioning rod holding rod | 265 | 1 | 90002249 | GA3X4000 |
| 40 | Expander Wire for Expander Spacer | Auxiliary positioning rod inner core | 328 | 1 | 90002250 | GA3X4100 |
| 41 | L-Curette for Anterior Nail Contact | L-shaped spatula | 155 | 1 | 90002117 | GA2X17 |
| 42 | L-space , adjustable | Adjustable positioning rod | 9-12 | 1 | 90002243 | GA3X3400 |
| 43 | Space Shaft,9 | Positioning rod 9 | 9 | 1 | 90002244 | GA3X35 |
| 44 | Space Shaft,10 | Positioning rod 10 | 10 | 1 | 90002245 | GA3X36 |
| 45 | Space Shaft,11-12 | Positioning rod 11-12 | 11-12 | 1 | 90002246 | GA3X37 |
| 47 | Extraction Screw | Pull bolt | M8×0.75 | 1 | 90002257 | GA3X48 |
| 48 | Aiming Beam for Locking, 340-420 | Guide rod 340-420 | 340-420 | 1 | 90002236 | GA3X2700 |
| 50 | Expander Spacer,9 | Auxiliary positioning rod 9 | 9 | 1 | 90002251 | GA3X42 |
| 51 | Expander Spacer,10 | Auxiliary positioning rod 10 | 10 | 1 | 90002252 | GA3X43 |
| 52 | Expander Spacer,11-12 | Auxiliary positioning rod 11-12 | 11-12 | 1 | 90002253 | GA3X44 |
| 53 | Sspace Block | Positioning card block | \ | 1 | 90002247 | GA3X3800 |
| 54 | Aiming Arm for Distal Locking | Remote sight | \ | 1 | 90002254 | GA3X45 |
| 55 | Aiming Arm for Dynamic Locking | Dynamic hole sight | \ | 1 | 90002255 | GA3X4600 |
| 57 | Extraction Hook | Guide needle with hook | 2.8 | 1 | 90002015 | GA1X15 |
| 58 | Screwdriver Stardrive, cannulated | End cap hollow wrench | SW4 | 1 | 90002064 | GA1X5500 |
| 59 | Screwdriver, hexagonal with spherical head | Tail cap universal ball wrench | SW4 | 1 | 90002079 | GA1X6900 |
| \ | Insrument Set Box | \ | \ | 1 | 90002258 | GA3X-0100-XH |
| \ | Ream Head Box | \ | \ | 1 | \ | (GA1X8400) |

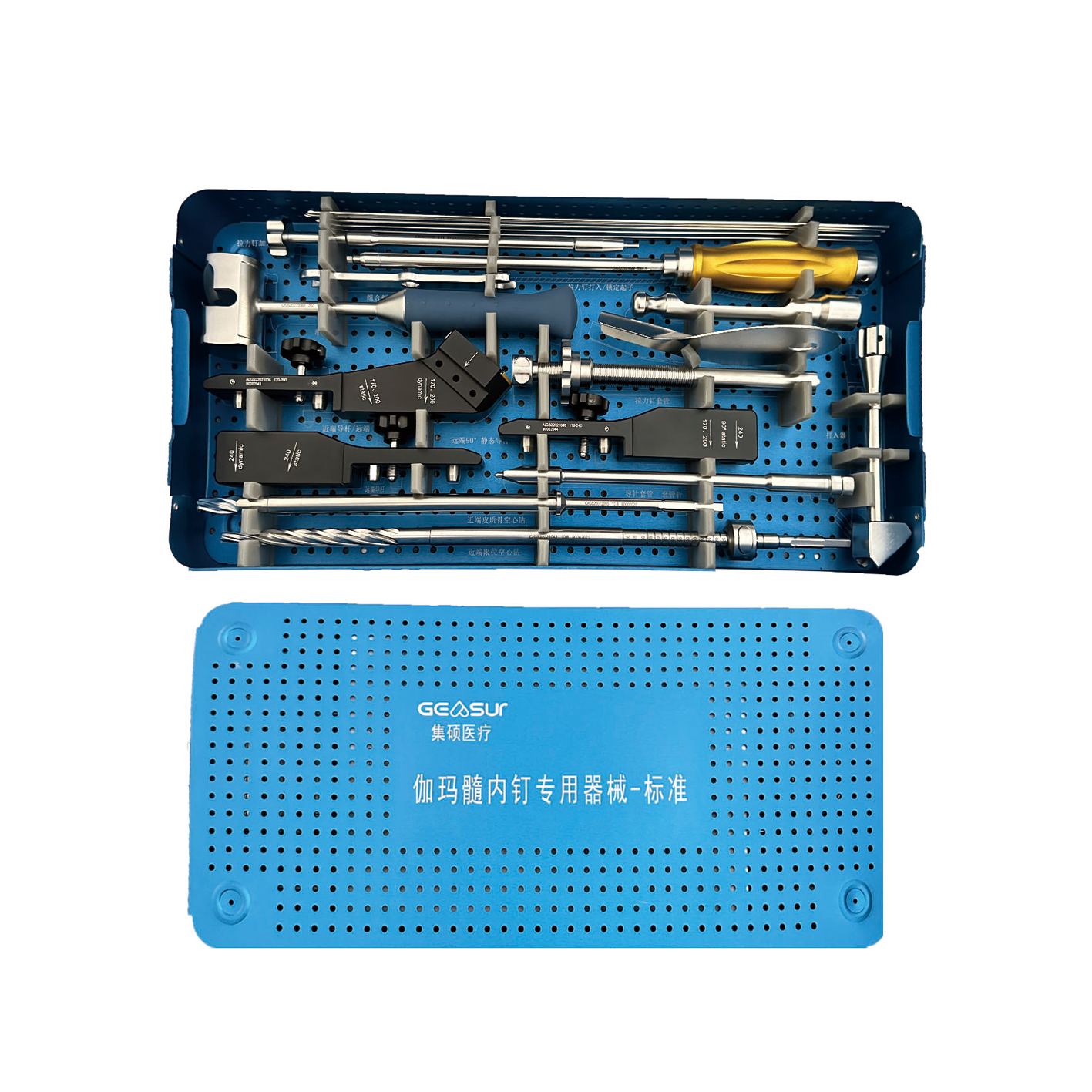

The instrument set includes essential tools such as Radiographic Rulers, Guide Wires, Hand Reamers, Flexible Ream Shafts, Protection Sleeves, Drill Bits, Aiming Arms for Distal/Dynamic locking, Depth Gauges, and specific Screwdrivers, all packaged in a specialized instrument set box.
The kit is equipped with multiple Reamer Heads in 0.5mm increments, ranging from 8.5 mm to 13.0 mm in diameter, allowing for precise soft expansion depending on the patient's intramedullary canal size.
Yes, the set contains dedicated Aiming Arms for both Proximal Locking and Distal/Dynamic Locking, ensuring precise alignment for guide pin insertion and locking screw placement.
The included Depth Gauge for Locking Screws provides measurement capabilities ranging from 20 mm to 100 mm, ensuring accurate screw selection during fixation procedures.
Yes, both the Instrument Set Box and the Ream Head Box are structured to withstand standard medical sterilization protocols (such as autoclaving) to ensure maximum safety in the operating theater.
The set features standard AO type quick coupling adaptors and T-Handles with quick coupling mechanisms, allowing rapid and secure switching between different drill bits and reamers.
