Geasure Retrograde Intramedullary Nail-Titanium Alloy Class III Implant for Fast Healing Reduced Soft Tissue Damage Hospital Use

Product Description

Intramedullary Nail Header

Products Description

Products Overview
Intramedullary Nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×170×130° Titanium Alloy 15649170
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×200×130° Titanium Alloy 15649200
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×240×130° Titanium Alloy 15649240
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×15 Titanium Alloy 15601115
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×20 Titanium Alloy 15601120
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×70 Titanium Alloy 15600570
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×80 Titanium Alloy 15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw SGM-IIK 4.9×30--72 Titanium Alloy 15604930
Femoral Nail locking screw I SGG-IIIK 6.5×75 Titanium Alloy 15246575
Femoral Nail Intramedullary Nail SGG-IIIK 9.0-13.0 Titanium Alloy 15249340
Humeral nail Intramedullary Nail SHG-IK 8 Titanium Alloy 15728160

Our Advantages

Our Advantages Banner
1.0m radian radius

1. 1.0m radian radius:

The length is consistent with the anatomy of the FEMORAL medullary cavity.

Screw-in-screw design

2. Screw-in-screw design:

To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.

Flexible Nail Sizing

3. Comprehensive Sizing Options:

Short nail: diameter of 8.0 / 9.5mm, length of 160mm.
Long nail: diameter of 7.0 / 8.5mm, length of 180-315mm (15mm interval).

All nails have left and right type, titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.

Details Images

Proximal fixation

Proximal fixation

Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.

Distal fixation

Distal fixation

Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.

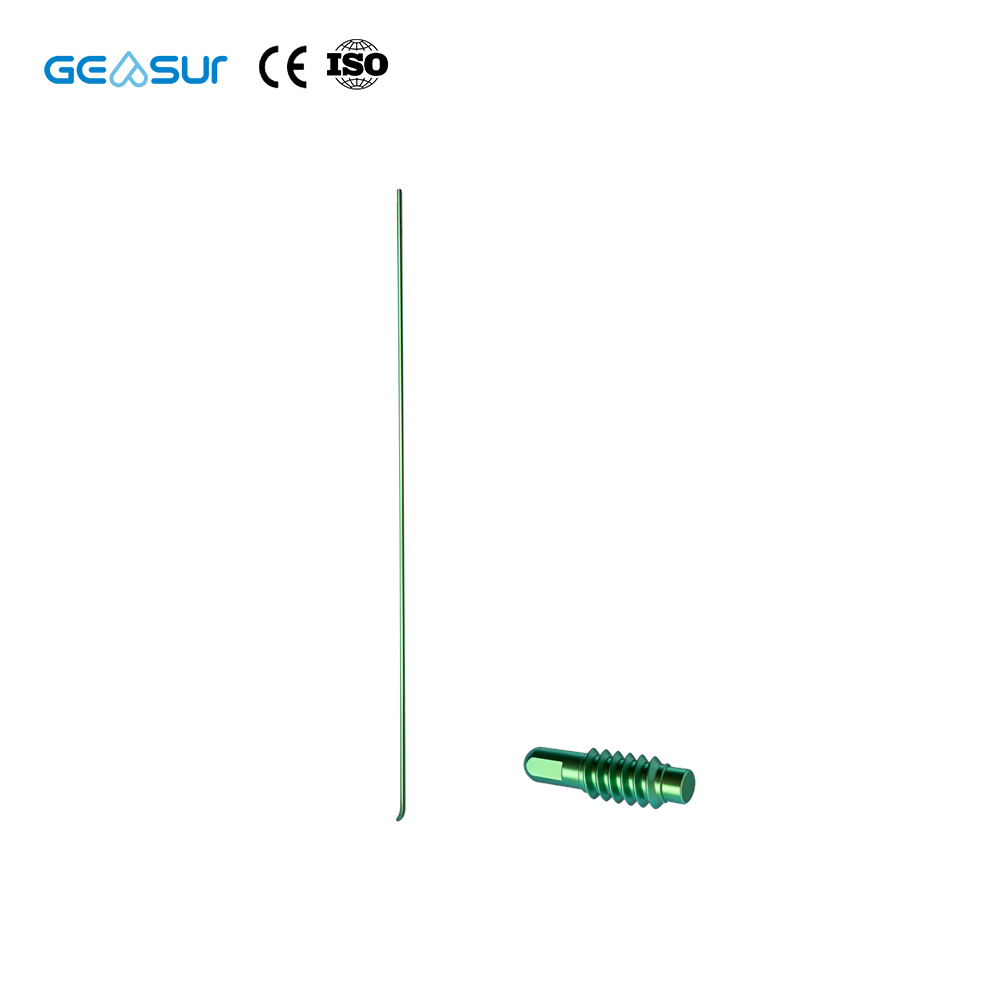

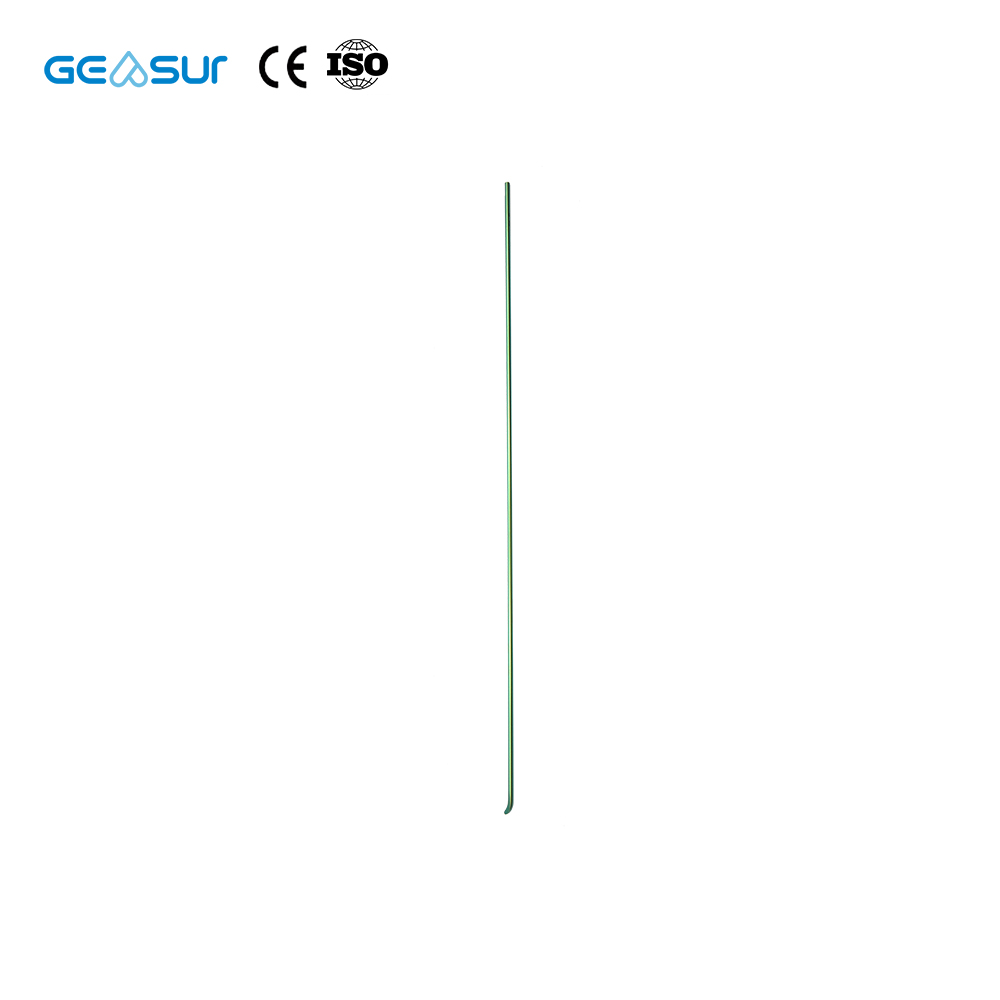

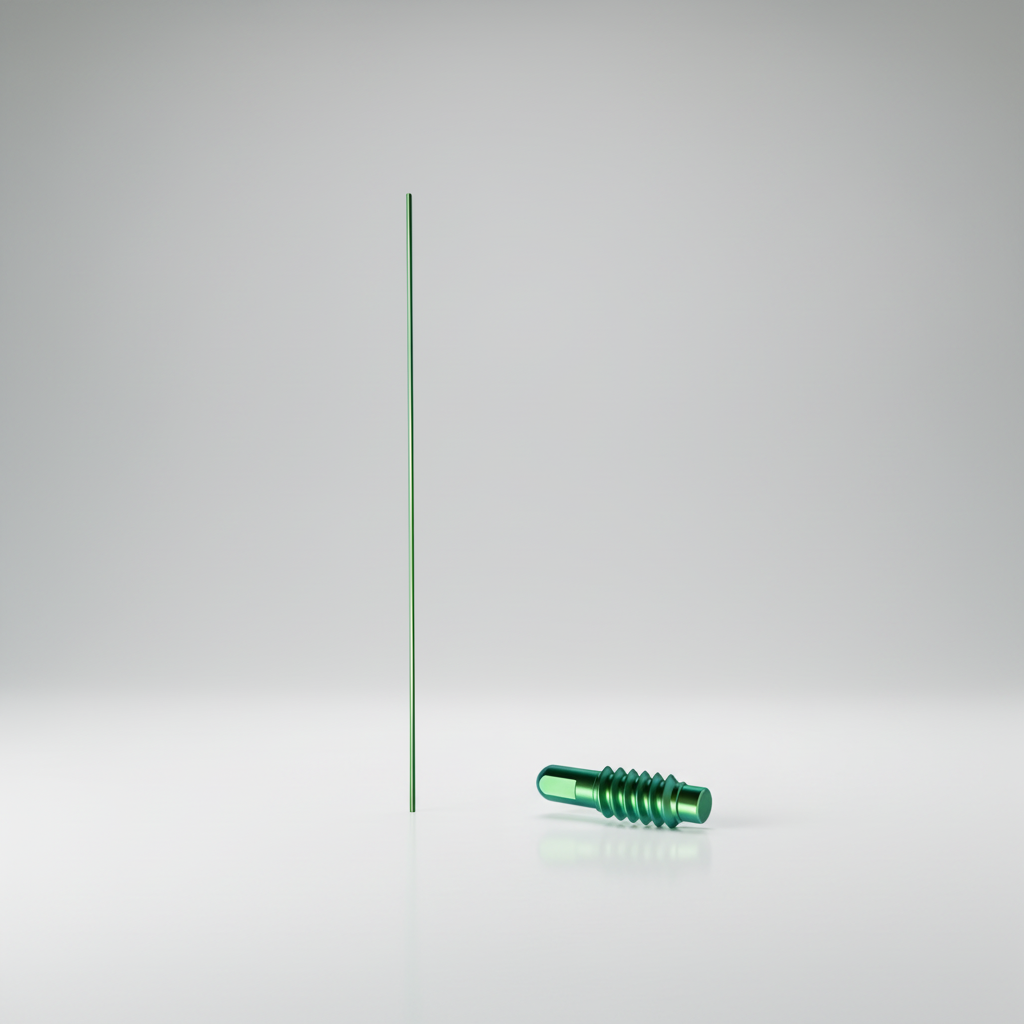

Elastic Nail

Elastic Nail

Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm / 6-8 years old; 3.5mm / 9-11 years old; 4.0mm / 12-14 years old.

Compression

Compression

Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.

TFNA System

TFNA System TFNA

Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.

Technical Details Summary

Company Profile

Office Facility
Production Workshop
We are a leading orthopedic medical device R & D, manufacturing and operation enterprise in China. The company is located in the West Taihu Science and Technology Industrial Park. We focus on the development, manufacturing and sales of orthopedic trauma, spine and bone joint implants and devices. The sales network covers the whole country and has sales offices in many regions. With first-class production equipment, professional R & D, technology and manufacturing team, quality management system in line with international standards and efficient marketing service strategy, our products have won the affirmation of many partners. We have a number of senior R & D technical teams with many years of experience in orthopedic medical devices, making unique achievements in the field of orthopedic medical devices. We have always put the talent development strategy in the first place, continuously improved and built a professional innovation team with high quality and strong R & D ability. Adhering to the development concept of technological innovation, product innovation and service innovation, we gather and integrate advantageous resources, serve the great cause of human health, work hard and move forward bravely.
Quality Management System
Surgical Implants Storage

Why Choose Us

Why Choose Us Diagram

FAQ

1 Would you please give some information on shipping mode and charges?

Normally we send through courier like DHL, FEDEX, UPS, TNT etc. or post upon request from clients.

2 Do you have ISO9001, ISO 13485, CE approvals?

Yes, we hold ISO9001, ISO13485, and CE certifications for our orthopedic implants, including the Gamma Type I Intramedullary Nail. We can provide certificate copies upon request.

3 What is the minimum order that we can place? Do you provide free samples?

We expect your minimum orders to be least at US$500. However, we understand that customers need to place smaller samples orders in the beginning in order to test market our products. We could offer the free samples, but do not pay the cost of freight.

4 Can I buy products not shown but similar to your catalogue?

Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.

5 Do you have stock for listed products, or they are newly produced? What are your terms of payment?

Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information. Payment <= 800USD, 100% in advance. Payment > 800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal etc.

6 What material is used for the intramedullary nails?

All intramedullary nails are made of high-quality Titanium Alloy material to ensure biocompatibility and high durability.
