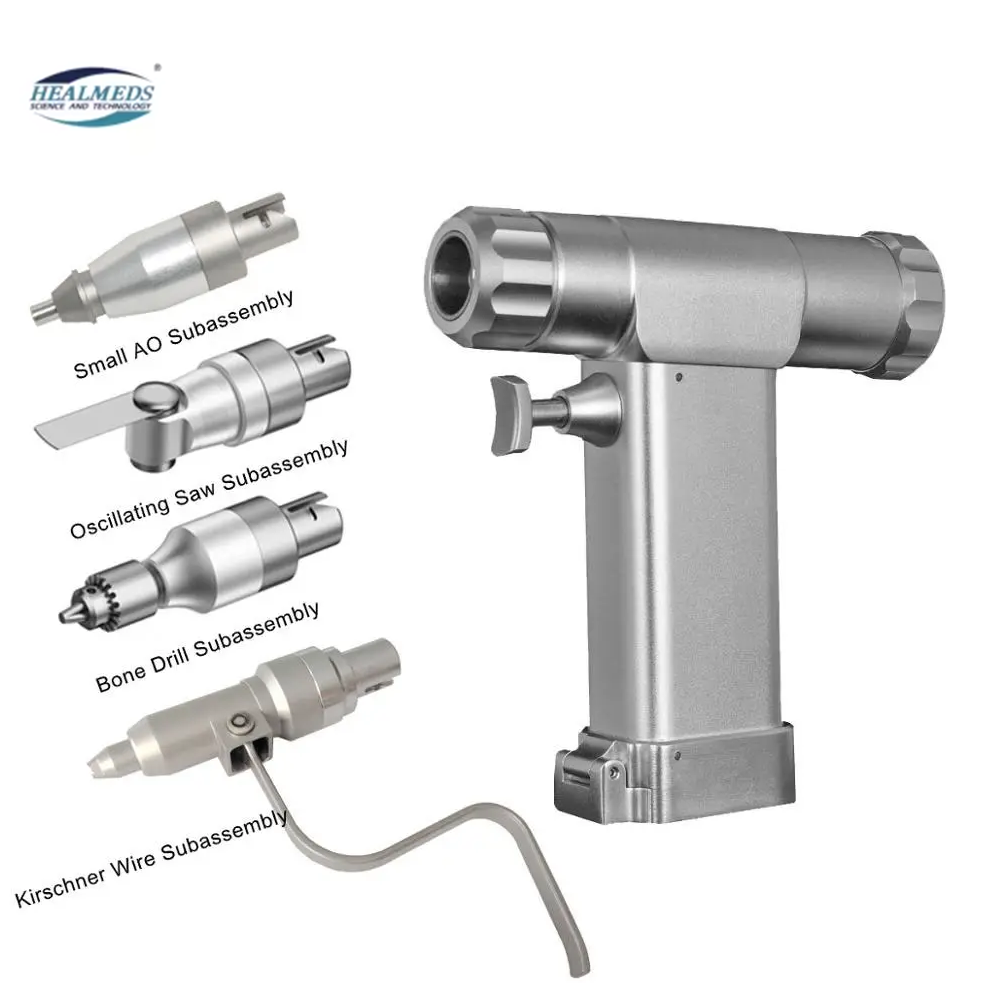

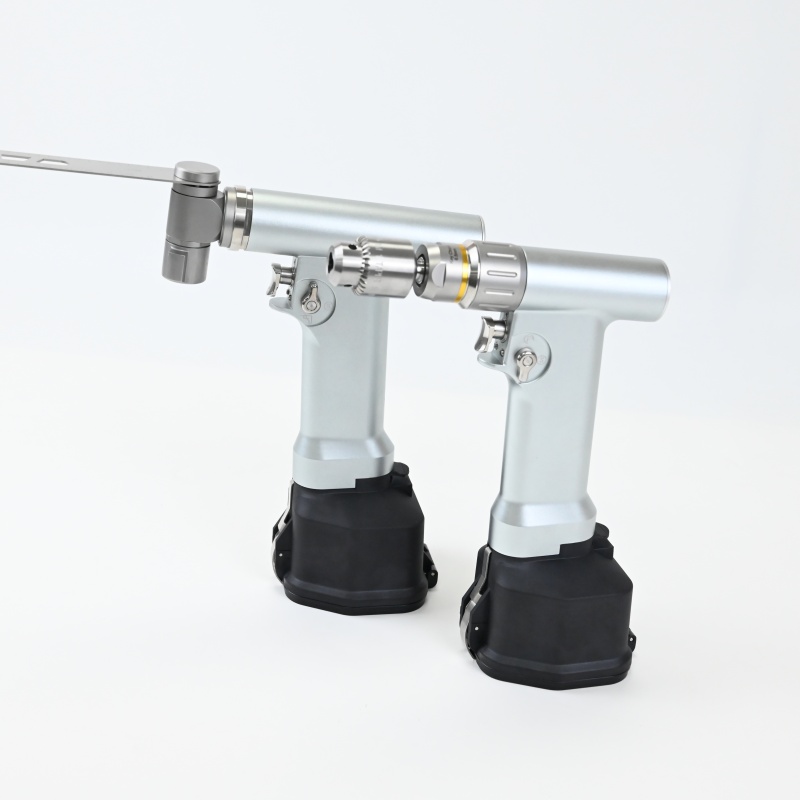

Based on the Conmed, our E100 Bone Saw includes a wide range of heavy-duty drills and saws. The battery and performance are the same as the Conmed, with dual-speed control for multiple cutting options. The reciprocating saw is compact and has excellent ergonomics. It cuts faster and harder. The rotating handle allows for high-speed drilling and high-torque reaming. It utilizes innovative motor technology to provide less vibration and better handle control. There are single and dual trigger options as well as reaming and drilling attachments. It also comes with a modular sterilization container and batteries.
Technical Features
Speed Range (Key Chuck Attachment): 0-1200rpm
Torque (Key Chuck Attachment): 3.5N-m
Speed Range (Reaming Attachment): 0-400rpm
Torque (Reaming Attachment): 10N-m
All copper thick wall chuck, very durable, high concentricity, stable speed, spindle clamping, easy and quick to change drill bits.
Tail power switch design, smooth operation, beautiful and does not affect the use.
Micro motor, full copper core wire movement, low noise, high power, high stability, easy to store.
Frosted texture process on the surface of the body, effectively prevent slippage, comfortable to hold, not tired of long time use.
Details
Specification
Item
Value

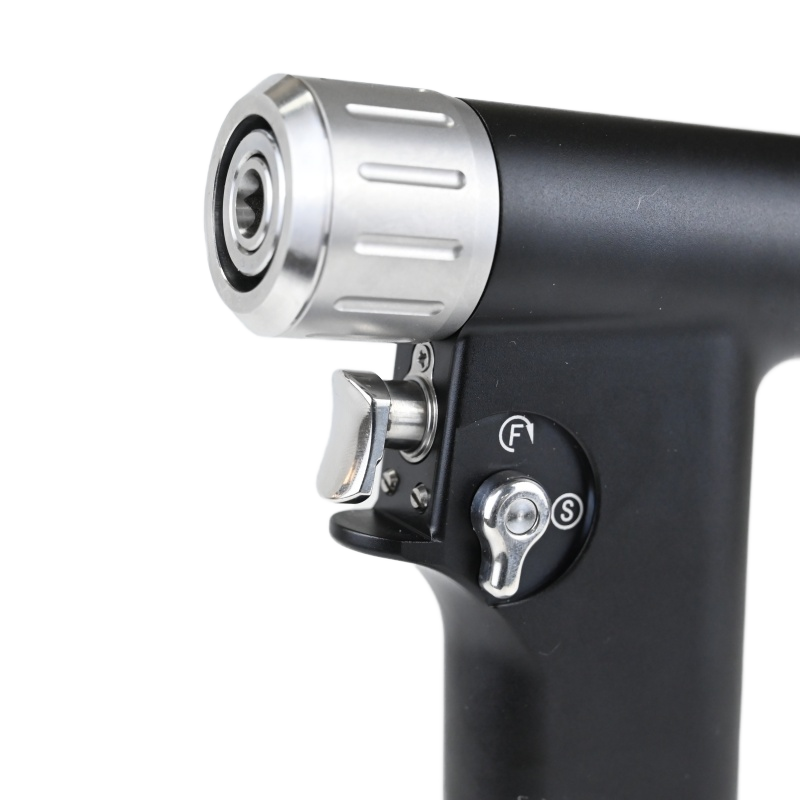

Multi-Function Handpiece
Equipped with brushless DC canulated motor imported from USA

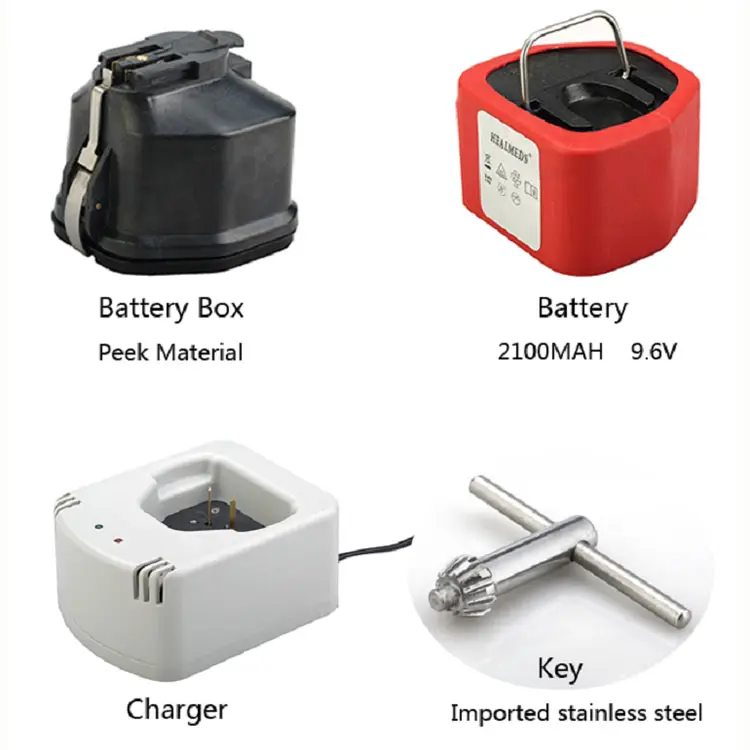

Battery
Ni-MH with Longer service-life, High capacity: 2100MAH Voltage: 9.6V

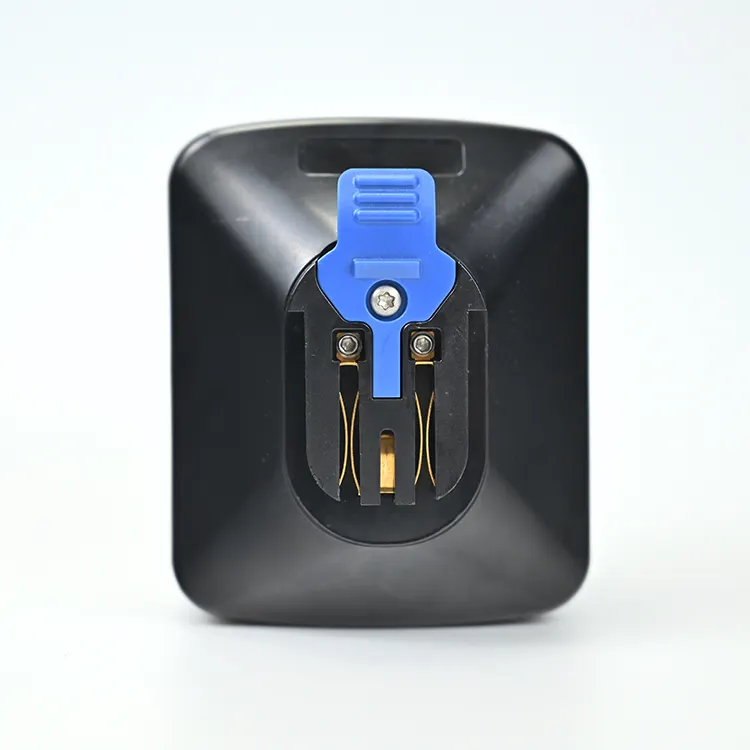

Battery Box
Peek material: sterilized more than 3000 times
Charger
More convenient design to guarantee the battery life
Transfer Shield
Imported stainless steel 304
Key Chuck
Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment
Speed Range 0-400rpm, Torque 10NM
K-wire Attachment
0.7-1.6mm / 1.6-4.0mm
Reciprocating Saw
Frequency: 0-12000cpm
Sterilization Box
445 * 275 * 215mm, 4.6Kg
Payment & Delivery
Our Advantages
Frequently Asked Questions
What are the primary applications for the E100 Bone Drill?
The E100 Multifunction Drill is designed for orthopedic and bone surgeries, supporting multi-functional applications including heavy-duty drilling, high-torque reaming, and high-frequency reciprocating sawing.
Is the E100 compatible with Conmed battery and accessories?
Yes, our E100 is designed based on the Conmed system. The batteries, performance output, and dual-speed controls match the Conmed interface, allowing for seamless integration.
What motor technology does the E100 utilize?
The handpiece is integrated with a premium brushless DC canulated motor imported directly from the USA, which optimizes performance by reducing vibrations and noise while extending overall product lifespan.
How durable is the battery box during autoclave sterilization?
The battery box is constructed from advanced Peek material. It is fully sterilizable and can safely withstand autoclave processes more than 3000 times without degrading.
What are the speed and torque values for the attachments?
The Key Chuck Attachment features a speed range of 0-1200rpm with 3.5N-m of torque, whereas the Reaming Attachment operates at 0-400rpm with a higher torque output of 10N-m.
What components are included in the modular sterilization kit?
The modular kit includes the main multi-function handpiece, essential attachments (Key Chuck, Reaming, K-Wire, Reciprocating Saw), high-capacity batteries, a dedicated charger, transfer shield, and an autoclave-safe aluminum sterilization container.
