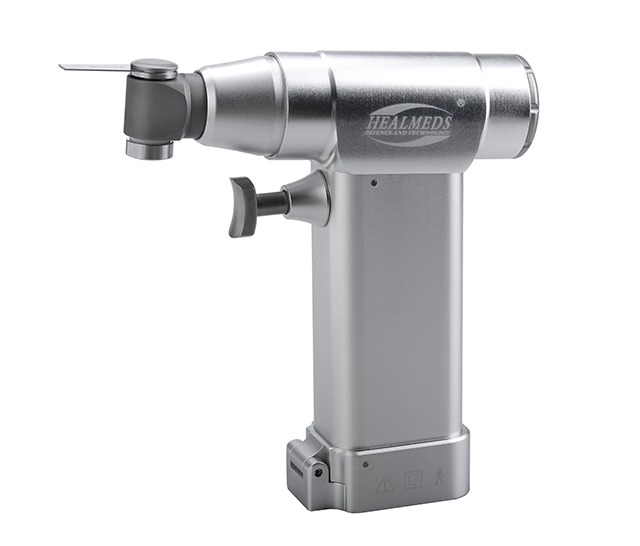

Medical Supplies Orthopedic Bone Cutting Machine Small Oscillating Saw System 110V/220V

Product Description

Technical Data
No.	Item	Value	No.	Item	Value
1	Oscillation	0-16000cpm	4	Sterilization	≤155°C
2	Battery capacity	1400mAh	5	Operation voltage	7.2V
3	Battery type	Ni-MH battery	6	Noise	≤75dB

Configuration
No.	Accessory	Quantity (PC)	Note
1	Handpiece	1	Standard
2	Battery	2	Standard

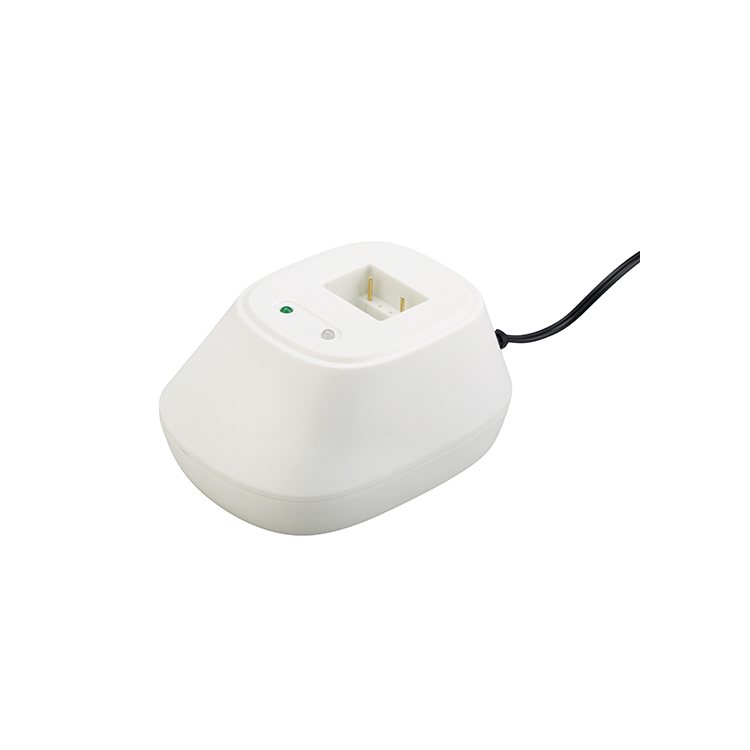

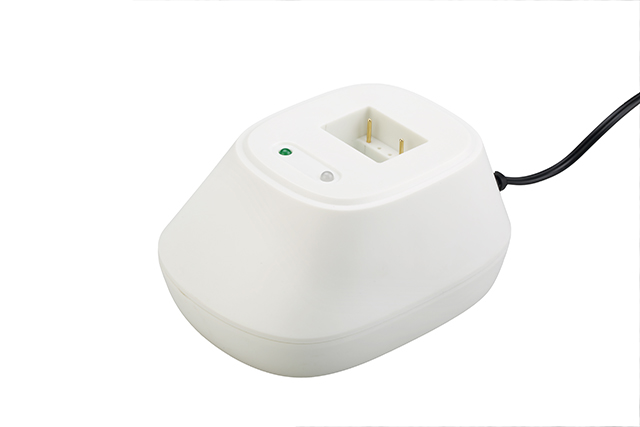

3	Charger	1	Standard
4	Blades	2	Standard

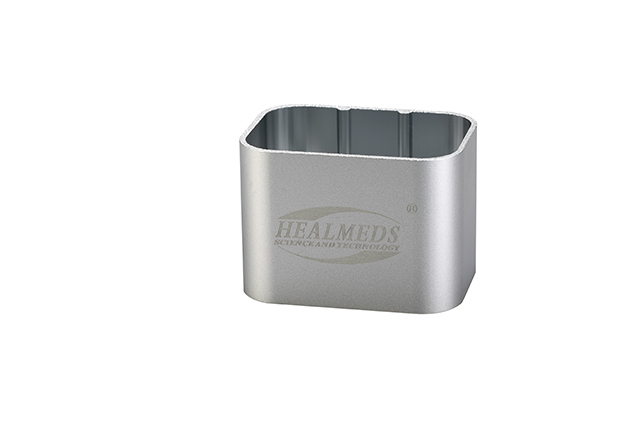

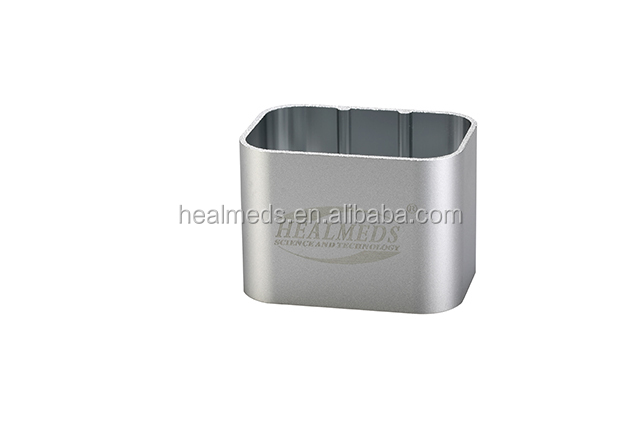

5	Sterilization channel	1	Standard
6	Aluminum alloy case	1	Optional

Product Details Gallery

Features

Made of High-strength stainless steel
Mini handpiece, suitable for convenient use
Imported Motor, providing excellent performance
No Limit speed-changing, highly convenient control

Warranty

Warranty for the whole machine is 1 year, for the motor is 2 years, and for the battery and other fast consumption items is 3 months.

Operation Notes

Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C). If the temperature exceeds 135 °C, the motor will be damaged.

Normal bone drill can only hold drill bits less than 6mm. Acetabulum reaming drill with big torque has an RPM around 300; cannulated drill used with nail or K-wire runs at around 600 RPM.

The battery must be removed from the power tool after surgery. Otherwise, small automatic electrical discharge will shorten the battery lifespan.

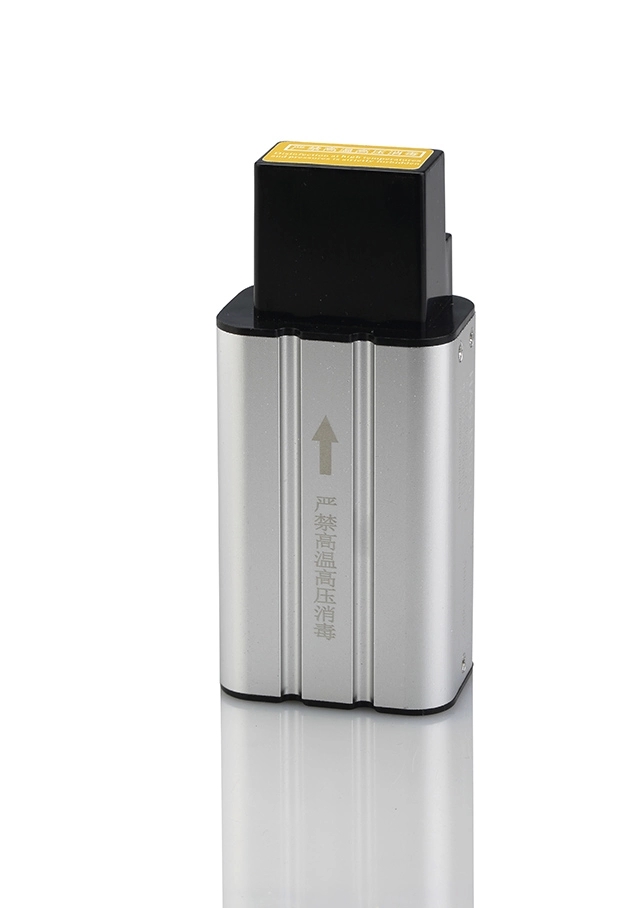

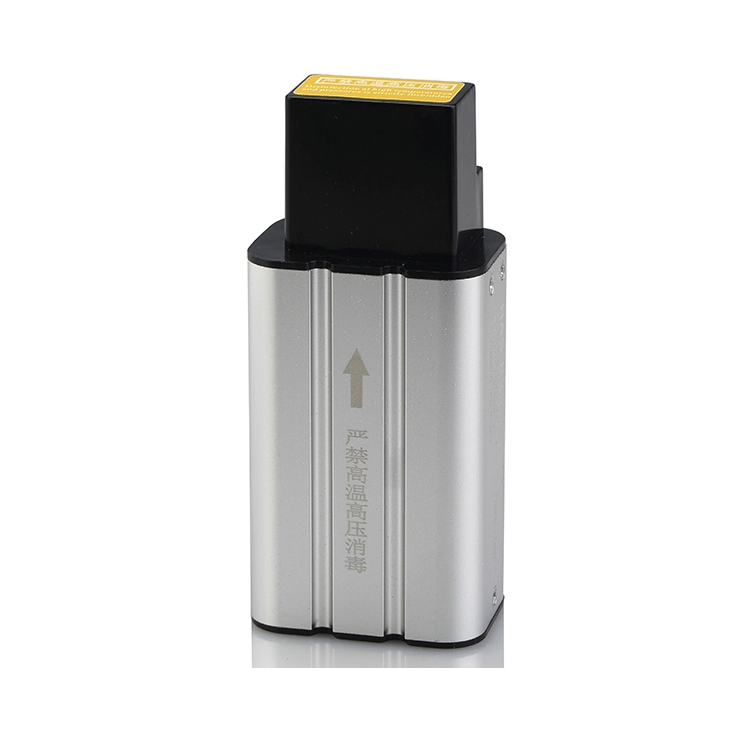

The battery cannot be sterilized and is not autoclavable.

The cranial bur must be washed immediately after the surgery to avoid blood sticking inside the bur, and then dried properly.

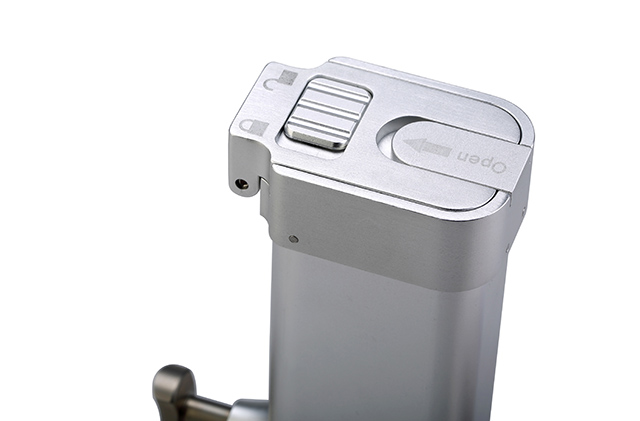

The battery compartment in the handpiece of the tool must remain dry and free of water after sterilization.

The cranial bur blade is made of medical stainless steel. To avoid breakage, it is designed to be flexible rather than extremely hard. As it is subject to wear, we suggest using each blade for only 1 surgery.

Certifications

CE / ISO13485 / CFDA / GMP / FSC

Exhibition

Packaging & Shipping

Packing: Optional Aluminum case for each set, then placed into a high-quality carton, or custom packing on request.

Shipping: Door-to-door courier options like DHL, TNT, UPS, FEDEX, or shipped via air/sea freight.

Frequently Asked Questions (FAQ)

What is the sterilization temperature limit for the oscillating saw?

The standard sterilize temperature should be ≤ 135 °C. For the improved type, it can handle up to ≤ 155 °C. Exceeding these temperatures will cause damage to the motor.

Is the battery autoclavable?

No, the battery cannot be sterilized and is not autoclavable. It must be taken out of the handpiece after surgery.

What is the warranty coverage for this device?

The warranty is 1 year for the complete machine, 2 years for the motor, and 3 months for the battery and other fast-consumption items.

What kind of battery and capacity does the system use?

The system operates on a Ni-MH battery with a capacity of 1400mAh and a working voltage of 7.2V.

How many times can each cranial bur blade be used?

The blade is made of medical stainless steel. To prevent breakage, it is designed to be flexible and not excessively hard. Therefore, it is recommended to use each blade for only 1 surgery.

What packaging options are available?

The standard optional package includes an aluminum alloy case for each set, which is then packed into a durable export carton. Custom packaging options are also available upon request.
