Orthopedic Surgical Instrument Brushless Motor Bone Oscillating Saw for Pet

Product Description

Product Description

Product Description Image 1
Product Description Image 2

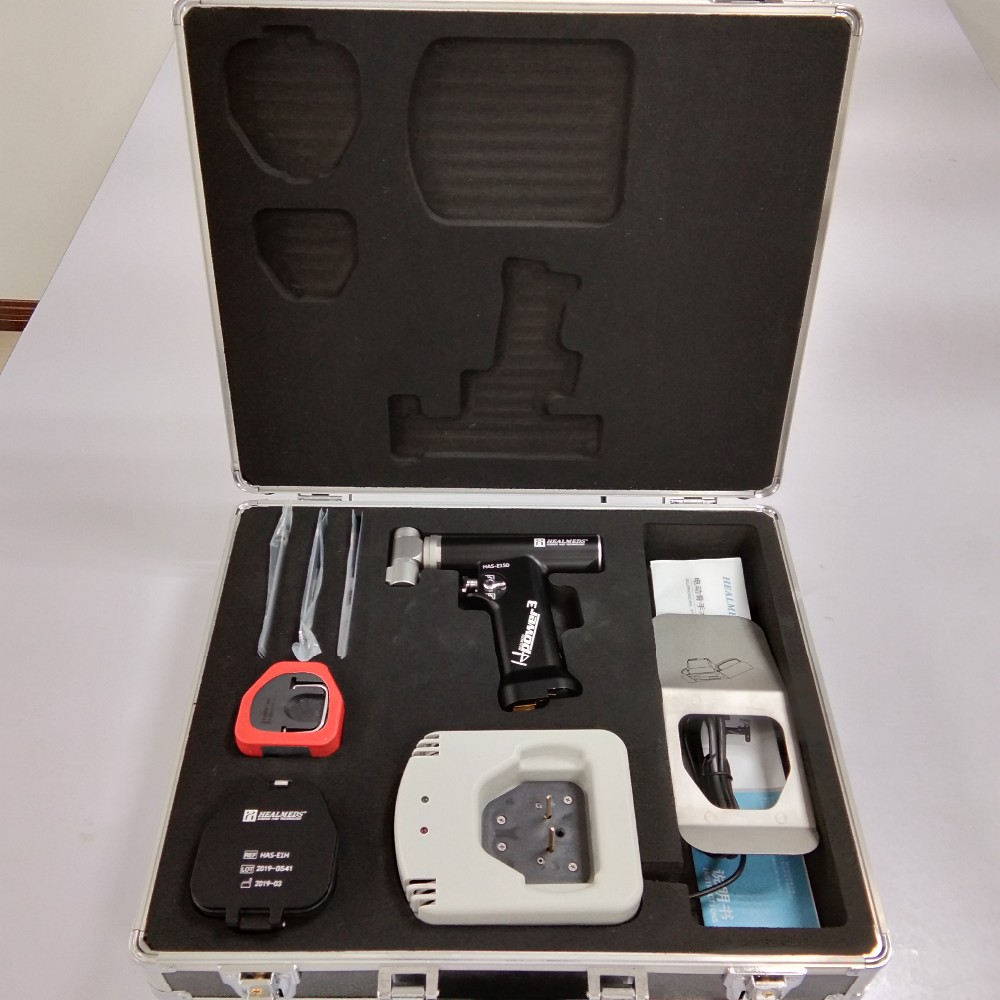

Product Description Image 3

Specification

NO. Item Value
1 Oscillations 11000cpm
2 Swing ≥4.5°
3 Noise ≤75dB
4 Sterilization temperature 135°C
5 Operation voltage 9.6V
6 Battery capacity 2100mAh
NOTE:
  • Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ), if the temperature is over 135 °C, the motor will be damaged.
  • Normal bone drill can only hold drill bits less than 6 mm, reaming drill with big torque, rpm is around 300, hollow drill is used with nail or K wire, rpm is around 600.
  • The battery need to be get out of the power tool after surgery. Otherwise the small automatic discharge of the electric will make the life of the battery short.
  • The battery cannot be sterilized, it is not resistant to high temperatures.
  • The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur, then we should make it dry.
  • The battery space in the hand piece of the tool should not have any water, after sterilization.
  • The cranial bur blade is made of medical stainless steel, in order to avoid broken, so it is flexible and not very hard, it is easy to be worn-out, we suggest each blade only use for 1 surgery.

Certification

Certification

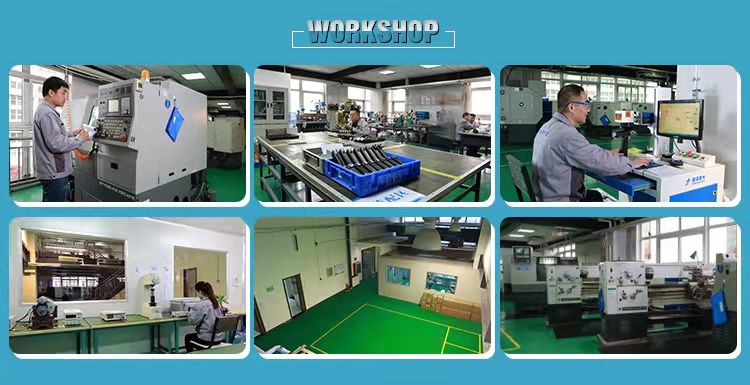

Facility & Production

Facility Image 1
Facility Image 2

Exhibition

Exhibition

FAQ

FAQ Overview
Q1: What is the maximum sterilization temperature for the power tool?
A1: The recommended sterilization temperature is ≤ 135 °C (Improved type ≤ 155 °C). Exceeding 135 °C may result in permanent damage to the motor.
Q2: Can the battery be sterilized along with the drill handpiece?
A2: No, the battery cannot be sterilized. It is not resistant to high temperatures and must be removed prior to the sterilization process.
Q3: Why must the battery be removed after surgery?
A3: The battery must be removed to prevent automatic discharge, which can drastically shorten the overall lifespan of the battery if left inside the power tool.
Q4: How should the cranial bur be cleaned post-operation?
A4: The cranial bur should be washed immediately after surgery using a purger to avoid blood from sticking, and then it must be thoroughly dried.
Q5: How many times can a cranial bur blade be used?
A5: To prevent breakage and maintain performance, each medical stainless steel blade is suggested for single surgery use only, as they are designed to be flexible and wear out easily.
Q6: What is the rotation speed (rpm) for the hollow drill?
A6: The hollow drill, typically used with a nail or K-wire, operates at a speed of around 600 rpm.
