| Product name | Model | Material | Specification | Code |
|---|---|---|---|---|

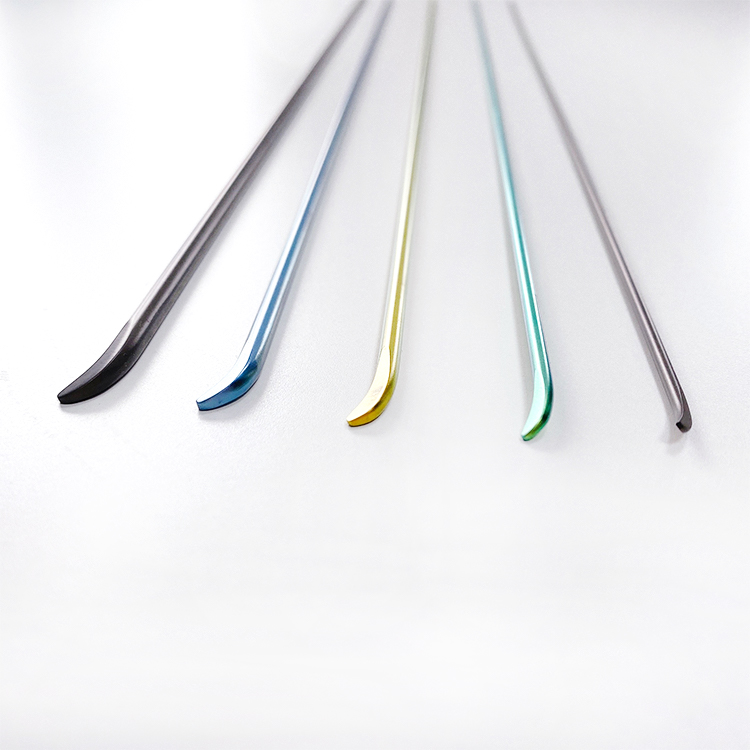

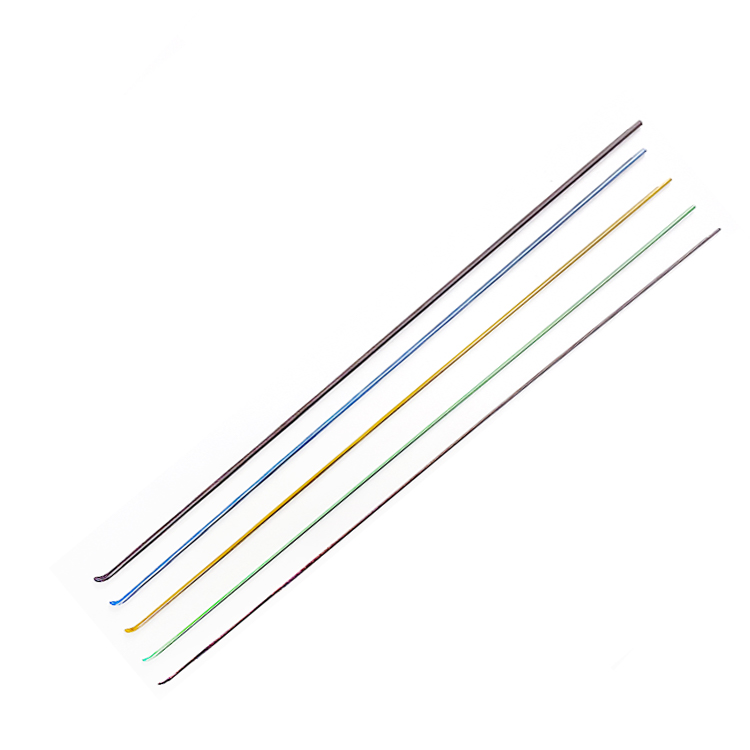

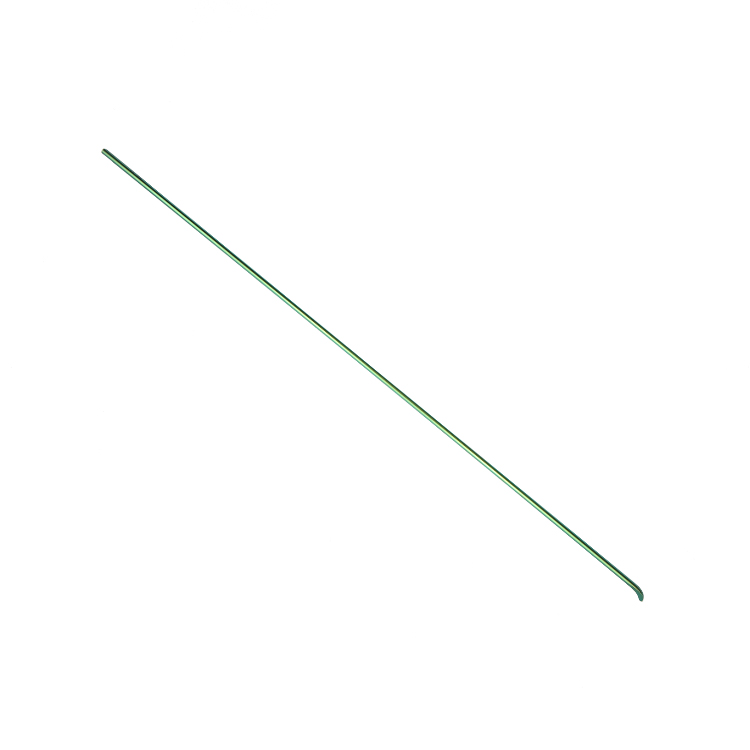

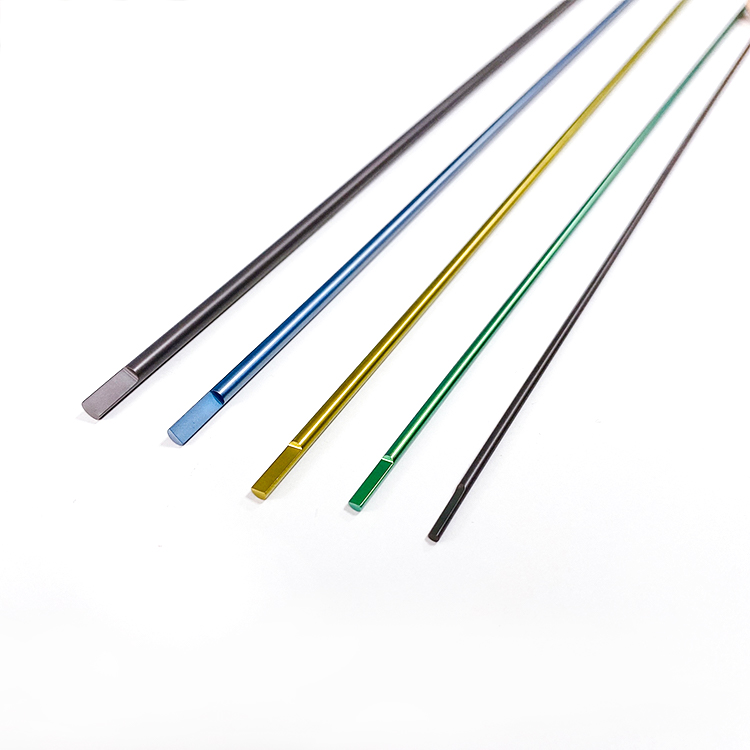

| Elastic Nail Intramedullary Nail | SNXS | Titanium Alloy | 2.5×440 | 15902940 |
| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation φ4.9 locking screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail locking screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
The length is consistent with the anatomy of the FEMORAL medullary cavity.
To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
Short nail: diameter of 8.0/ 9.5mm, length of 160mm.
Long nail: diameter of 7.0/ 8.5mm, length of 180-315mm (15mm interval).
All nails have left and right type, manufactured from high quality titanium alloy. The diameter is suitable for all applications, supporting simple operation and minimally invasive implantation.
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.

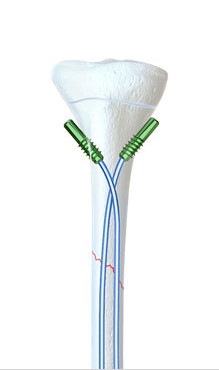

Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm / 6-8 years old; 3.5mm / 9-11 years old; 4.0mm / 12-14 years old.
Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
Q1: Would you please give some information on shipping mode and charges?
A: Normally we send through couriers like DHL, FEDEX, UPS, TNT, etc., or post upon request from clients.
Q2: Do you have ISO9001, ISO 13485, and CE approvals?
A: Yes, all our orthopaedic trauma products are manufactured in compliance with international standards and hold corresponding ISO 9001, ISO 13485, and CE certifications.
Q3: What is the minimum order that we can place? Do you provide free samples?
A: We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning to test our products. We can offer free samples, but the cost of freight must be covered by the client.
Q4: Can I buy products not shown in the catalogue but similar?
A: Yes, you can send us pictures or samples. However, custom manufacturing might take slightly longer for delivery.
Q5: Do you have stock for listed products, or are they newly produced? What are your terms of payment?
A: Generally, we maintain a monthly-produced stock for most listed products. Please verify live inventory with our sales team. Payment <= 800USD, 100% in advance. Payment > 800USD, 30% T/T in advance, balance before shipment. We accept L/C, T/T, Western Union, PayPal, etc.
Q6: What material is used for your intramedullary nails?
A: All our intramedullary nails are made from premium medical-grade Titanium Alloy, which ensures excellent biocompatibility, high strength, and flexibility to support patient recovery.
