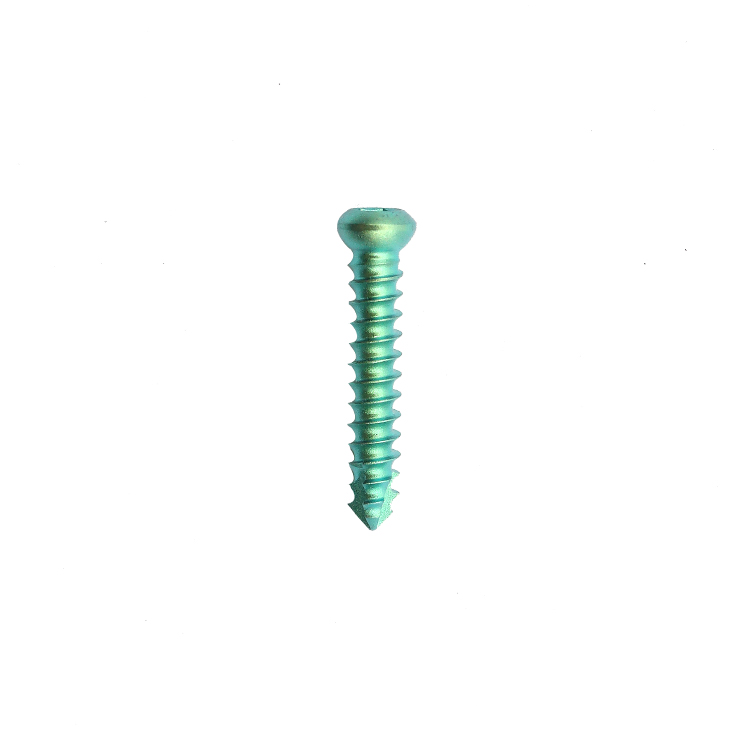

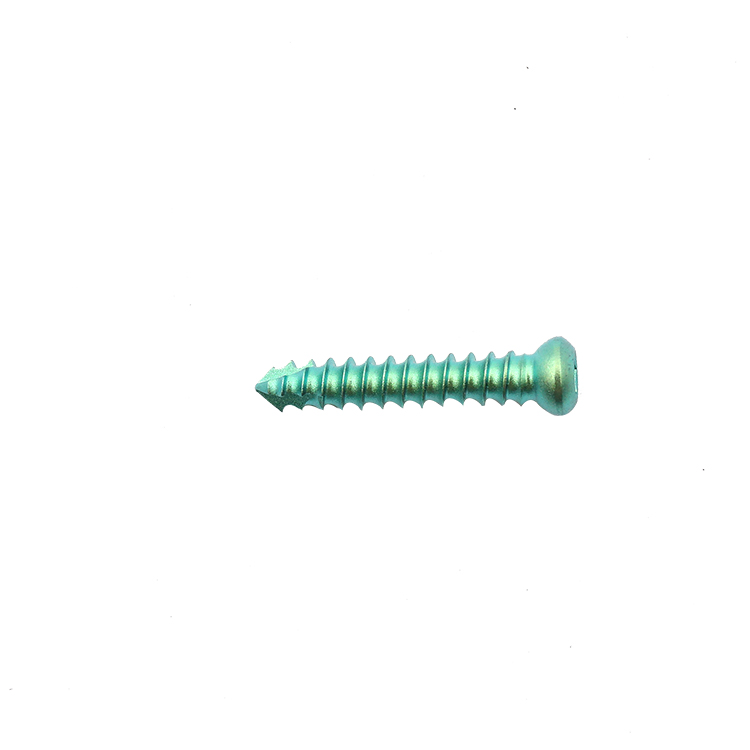

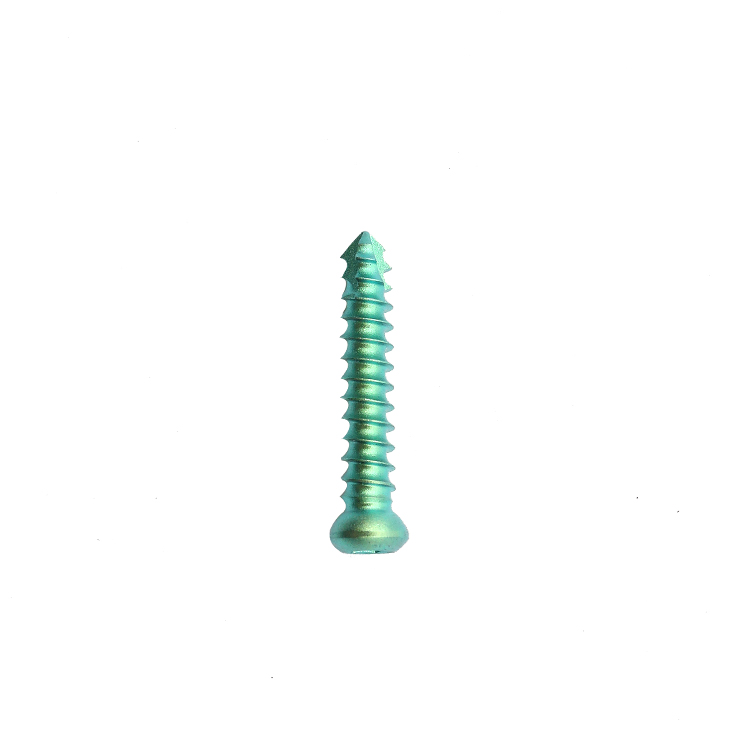

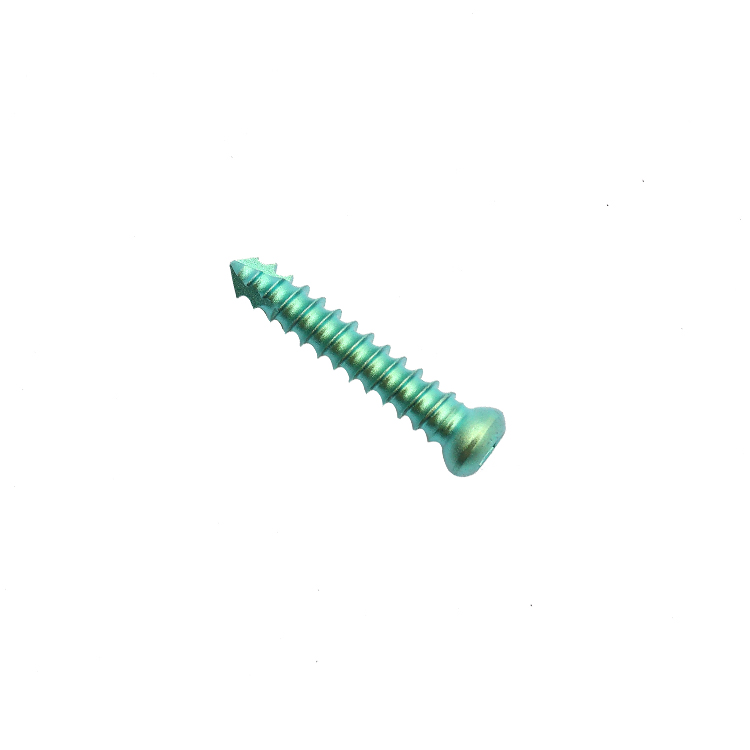

Geasure Titanium Alloy Mini Nail Screw 3.5 Locking Screw for Ulna Fiber Nail Interlocking Implants Interventional Materials

Product Description

Intramedullary nail system overview
Intramedullary nail detail view

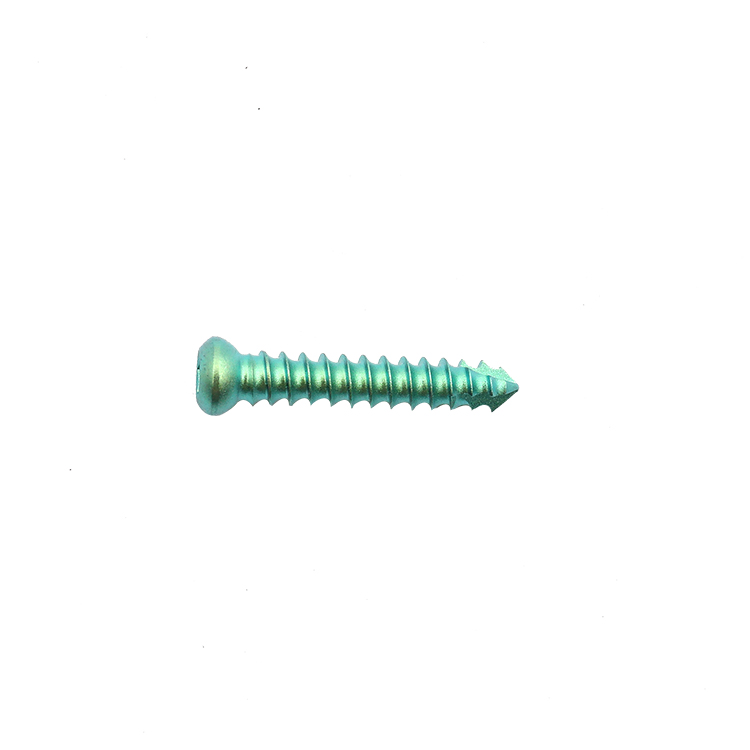

Locking screw detail view
Product name Model Material
Diameter 3.5 locking screw SWX-IS Titanium Alloy
Intramedullary Nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×170×130° Titanium Alloy 15649170
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×200×130° Titanium Alloy 15649200
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×240×130° Titanium Alloy 15649240
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×15 Titanium Alloy 15601115
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×20 Titanium Alloy 15601120
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×70 Titanium Alloy 15600570
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×80 Titanium Alloy 15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw SGM-IIK 4.9×30--72 Titanium Alloy 15604930
Femoral Nail locking screw I SGG-IIIK 6.5×75 Titanium Alloy 15246575
Femoral Nail Intramedullary Nail SGG-IIIK 9.0-13.0 Titanium Alloy 15249340
Humeral nail Intramedullary Nail SHG-IK 8 Titanium Alloy 15728160
Key Features
1.0m radian radius feature
1.0m Radian Radius
The length is consistent with the anatomy of the FEMORAL medullary cavity.
Screw-in-screw design feature
Screw-in-screw Design
To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
Short nail & Long nail specifications
Nail Options & Dimensions
Short nail: diameter of 8.0/ 9.5mm, length of 160mm.
Long nail: diameter of 7.0/ 8.5mm, length of 180-315mm (15mm interval).
All nails have left and right type, made of titanium alloy. The diameter is suitable for all applications, ensuring simple operation and minimally invasive implantation.
Details Images
Proximal fixation detailed view
Proximal Fixation
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Distal Fixation
Short screw: two different plane holes for locking.
Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.
Distal fixation detailed view
Elastic Nail detailed view
Elastic Nail
Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to:
• 3.0mm / 6-8 years old
• 3.5mm / 9-11 years old
• 4.0mm / 12-14 years old
Compression System
Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
Compression detailed view
TFNA System detailed view
TFNA System
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
Orthopedic Medical Devices
Orthopedic implant lineup 1 Orthopedic implant lineup 2
Company Overview
Manufacturing workshop overview Precision machinery instrumentation Quality inspection process
Frequently Asked Questions
Q1: Would you please give some information on shipping mode and charges?
A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc. or post upon request from clients.
Q2: Do you have ISO9001, ISO 13485, CE approvals?
A: Yes, our medical products are manufactured in compliance with international standards and hold corresponding ISO9001, ISO 13485, and CE certifications.
Q3: What is the minimum order that we can place? Do you provide free samples?
A: We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning to test our products in their market. We can offer free samples, but the cost of freight is not covered.
Q4: Can I buy products not shown but similar to your catalogue?
A: Of course you can, just send us pictures or samples. Please note that custom requests may take a little longer for delivery.
Q5: Do you have stock for listed products, or are they newly produced? What are your terms of payment?
A: Generally, we maintain stock for every listed product, which is replenished monthly. However, this is subject to sales conditions. Please consult with our sales representative for accurate inventory status. Payments ≤ 800 USD require 100% in advance. Payments > 800 USD require 30% T/T in advance, with the balance paid before shipment. Accepted payment methods include L/C, T/T, Western Union, PayPal, etc.
Q6: What material is used for the manufacture of the intramedullary nails?
A: All intramedullary nails are manufactured using high-quality Titanium Alloy, which ensures optimal biocompatibility, high strength, and reduces the risk of outer wall impact and main nail inward movement.
